| DRM - Reception logs | Kenwood TS-440 |
RTL, 6095 kHz, 6h-8h
Monitored from startup at 06h00. Strong receipt at some moments.
Some troubles
at others.
Rx conditions: TS440 + FM pickup point + FM mode, SAT-Service crystal
mixer 467kHz outside the rx with a 9v battery, Ant dipole 2x7m on
balcony + 5m coax cable + IBM Netvista A30P P4 1.8G
built-in soundcard. Note: The FM pickup is not the recommended
way, but I can't change my AM filter for now...
>>>>
DRMSoftwareRadio-MERLIN-00000127
Software Version 1.0.21
Starttime (UTC)
2003-06-16 06:00:02
Frequency
6095 kHz
Latitude
44°49'N
Longitude
0°38'W
MINUTE SNR
SYNC AUDIO TYPE
0000
0 0 0/00
0 06H00 (AM announcement)
0001
0 0 0/00
0
0002
0 0 0/00
0
0003
0 0 0/00
0
0004
9 23 0/10
0
0005
13 145 88/10
0 06H05
0006
14 150 134/10
0 PHOTO 06H06
0007
13 150 0/10
0
0008
16 150 267/10
0
0009
15 150 200/10
0 PHOTO 06H09
0010
14 150 284/10
0 06H10
0011
16 150 1438/10
0
0012
18 150 1067/10
0
0013
16 150 106/10
0
0014
18 150 1256/10
0 PHOTO 06H14
0015
15 150 973/10
0 PHOTO 06H15 (reports
request)
0016
18 150 1497/10
0
0017
17 150 668/10
0
0018
19 150 1342/10
0
0019
19 150 1476/10
0
0020
16 150 1177/10
0 06H20
0021
18 150 1290/10
0 PHOTO 06H21 (digital
dynamite)
0022
14 150 480/10
0 PHOTO 06H22 (problem...)
0023
11 150 0/10
0
0024
18 150 1140/10
0
0025
18 150 978/10
0
0026
20 150 1499/10
0
0027
20 150 1498/10
0
0028
18 150 1267/10
0
0029
20 150 1488/10
0
0030
19 150 1431/10
0 06H30
0031
19 150 1276/10
0
0032
20 150 1498/10
0
0033
21 150 1499/10
0
0034
21 150 1497/10
0
0035
21 150 1488/10
0
0036
20 150 1450/10
0
0037
21 150 1497/10
0
0038
21 150 1500/10
0
0039
22 150 1500/10
0
0040
21 150 1500/10
0 06H40
0041
22 150 1500/10
0
0042
19 150 1455/10
0
0043
22 150 1500/10
0
0044
18 150 1118/10
0
0045
21 150 1500/10
0
0046
21 150 1499/10
0
0047
22 150 1497/10
0
0048
21 150 1419/10
0
0049
19 150 798/10
0
0050
17 150 606/10
0 06H50
0051
15 150 96/10
0
0052
15 150 76/10
0
0053
16 150 562/10
0
0054
16 150 488/10
0
0055
15 150 268/10
0
0056
16 150 888/10
0
0057
19 150 1166/10
0
0058
19 150 1373/10
0
0059
19 144 1335/10
0
0060
0 0 0/00
0 07H00 (AM announcement)PHOTO
!
0061
0 0 0/00
0
0062
0 0 0/00
0
0063
0 0 0/00
0
0064
17 27 170/10
0
0065
20 150 1484/10
0 07H05
0066
20 150 1477/10
0
0067
18 150 932/10
0
0068
16 150 132/10
0
0069
16 148 178/10
0
0070
17 150 954/10
0 07H10
0071
18 150 1169/10
0
0072
20 150 1496/10
0
0073
20 150 1468/10
0
0074
18 150 1006/10
0
0075
20 150 1420/10
0
0076
21 150 1500/10
0
0077
21 150 1497/10
0
0078
21 150 1469/10
0
0079
19 150 1214/10
0
0080
18 150 917/10
0 07H20
0081
19 150 1096/10
0
0082
21 151 1458/10
0
0083
21 150 1385/10
0
0084
20 150 997/10
0
0085
17 149 558/10
0
0086
18 149 974/10
0
0087
21 150 1417/10
0
0088
19 150 1232/10
0
0089
19 150 885/10
0
0090
20 150 1472/10
0 07H30
0091
22 150 1500/10
0
0092
18 150 809/10
0
0093
21 150 1249/10
0
0094
19 150 1233/10
0
0095
19 150 1128/10
0
0096
17 150 633/10
0
0097
18 150 699/10
0
0098
18 150 529/10
0
0099
17 150 273/10
0
0100
18 150 933/10
0 07H40
0101
19 150 1455/10
0
0102
19 150 1157/10
0
0103
19 150 1222/10
0
0104
20 150 1487/10
0
0105
20 150 1418/10
0
0106
20 150 758/10
0
0107
18 150 794/10
0
0108
19 150 900/10
0
0109
20 150 1437/10
0
0110
20 150 1328/10
0 07H50
Note: around 7h50, noted
many red blinks of audio light,
sometimes for several
seconds, but audio is still there
without cuts.
0111
20 150 1386/10
0
0112
20 150 1464/10
0
0113
20 150 1419/10
0
0114
18 150 1016/10
0
0115
18 150 649/10
0 PHOTO 07H55
0116
16 150 40/10
0 (breaks)
0117
18 150 758/10
0
0118
18 150 1217/10
0 07H58
CRC: 0x2ddf
<<<<
(trying to switch to
15110 - R.Kuwait - No signal)
>>>>
DRMSoftwareRadio-MERLIN-00000127
Software Version 1.0.21
Starttime (UTC)
2003-06-16 08:05:00
Frequency
6095 kHz
Latitude
44°49'N
Longitude
0°38'W
MINUTE SNR
SYNC AUDIO TYPE
0000
20 146 1298/10
0 08H05
0001
20 150 1312/10
0
0002
20 150 1078/10
0
0003
20 150 1127/10
0
0004
20 150 1442/10
0
0005
19 150 1500/10
0 08H10
0006
20 150 1292/10
0
0007
16 150 7/10
0 08H12 PHOTO
0008
15 150 0/10
0
0009
14 150 0/10
0
0010
12 150 0/10
0
0011
16 150 0/10
0
0012
15 150 0/10
0
0013
14 150 0/10
0
0014
16 150 1/10
0
0015
16 150 0/10
0
0016
16 108 0/10
0
0017
16 150 0/10
0
0018
15 150 1/10
0
0019
15 150 1/10
0
0020
18 150 437/10
0
0021
16 140 0/10
0
0022
15 150 16/10
0
0023
14 150 0/10
0
CRC: 0x846f
>>
For an unknown reason, starting from 08H12, reception becomes
impossible because of something looking line a carrier. Further checks
in the afternoon show this must be (another) signal generated by my
monitor!
Below photos show display with and withour monitor.

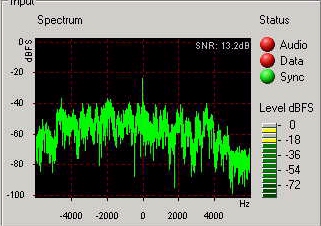

With monitor (16h25):

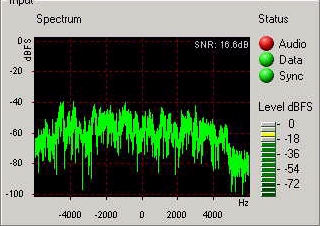

Without monitor (16h28) :
Tried again at 17H40 and that pick was not there but appeared at 17h46...
>>>>>>
DRMSoftwareRadio-MERLIN-00000127
Software Version 1.0.21
Starttime (UTC)
2003-06-16 17:40:25
Frequency
6095 kHz
Latitude
44°49'N
Longitude
0°38'W
MINUTE SNR
SYNC AUDIO TYPE
0000
19 151 1510/10
0 17H40
0001
19 150 1443/10
0
0002
20 150 1461/10
0
0003
20 150 1500/10
0
0004
20 150 1423/10
0
0005
18 150 496/10
0
0006
17 150 976/10
0
0007
19 150 1430/10
0
0008
19 150 1407/10
0
0009
19 150 1485/10
0
0010
18 150 1426/10
0 17H50
0011
18 150 1277/10
0
0012
19 150 1411/10
0
0013
19 150 1452/10
0
0014
19 150 1498/10
0
0015
18 150 1390/10
0
0016
19 150 1491/10
0
0017
20 150 1500/10
0
0018
21 150 1500/10
0
0019
20 150 1500/10
0
0020
19 150 1480/10
0 18H00
0021
19 150 1424/10
0
0022
19 150 1419/10
0
0023
19 150 1184/10
0
0024
16 150 206/10
0
0025
15 150 12/10
0
0026
18 150 1330/10
0
0027
20 150 1500/10
0
0028
19 150 1500/10
0
0029
20 150 1484/10
0
0030
19 150 1235/10
0 18H10
0031
16 150 229/10
0
0032
15 150 141/10
0
0033
13 149 3/10
0
0034
13 150 0/10
0
0035
13 150 46/10
0
0036
15 150 389/10
0
0037
15 150 572/10
0
0038
16 150 1129/10
0
0039
15 150 262/10
0
0040
14 150 0/10
0 18H20
0041
14 150 0/10
0
0042
15 150 68/10
0
0043
16 150 102/10
0
0044
16 150 168/10
0
0045
15 150 244/10
0
0046
16 149 306/10
0 18H26
CRC: 0xc560
<<<<
>
